RD-CDCR
RD-CDCR
Corner Disproportionate Collapse Restraint

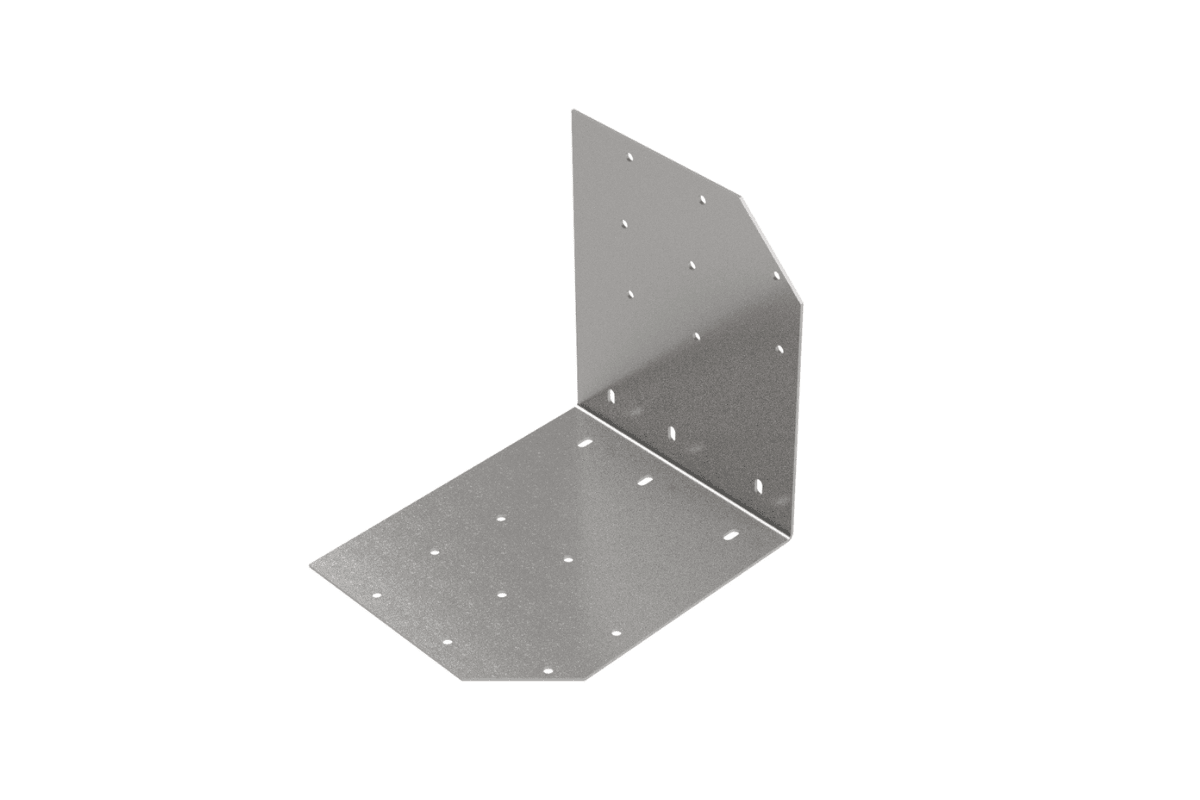

The RD-CDCR hanger is a disproportionate collapse detail for connecting rim beams at corner junctions.
Z275
Galvanised Mild Steel
Up to 25kN
Application Dependant
Face fixed corner bracket with high load connection avoids base plate compromising air tightness of the rim beam
One bracket to suit all joist depths

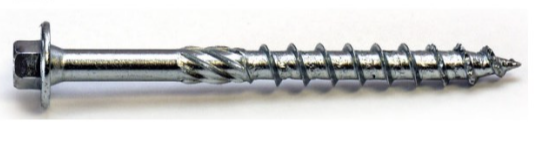

Paslode Strutural Timber Screws
Specific Cullen products have been specified to be fixed with Paslode Strutural Timber Screws for certain applications.
16 x no. Paslode PSTS 6.5 x 35mm supplied with hanger
3 x no. Paslode PSTS 6.5 x 115mm supplied with hanger
Enhanced Uplift
- Fixings into the incoming joist/truss are required to resist uplift
- Increased uplift figures can be achieved by nailing the additional triangular nail holes into the incoming member
- Web stiffeners required for I–Joists, 2 no. end blocks required for
- Open Web Joists & minimum bottom chord depth/vertical require for trusses
- Requires minimum full storey of masonry above to achieve values
Guidance
Suitable for 45mm and 90mm rim beams as shown in installations below
150mm long screws are required when installing 90mm rim beams
Must be installed on the outer side.
Two lengths of PSTS are required (6.5 x 35mm & 6.5 x 115mm).
