AWS
AWS

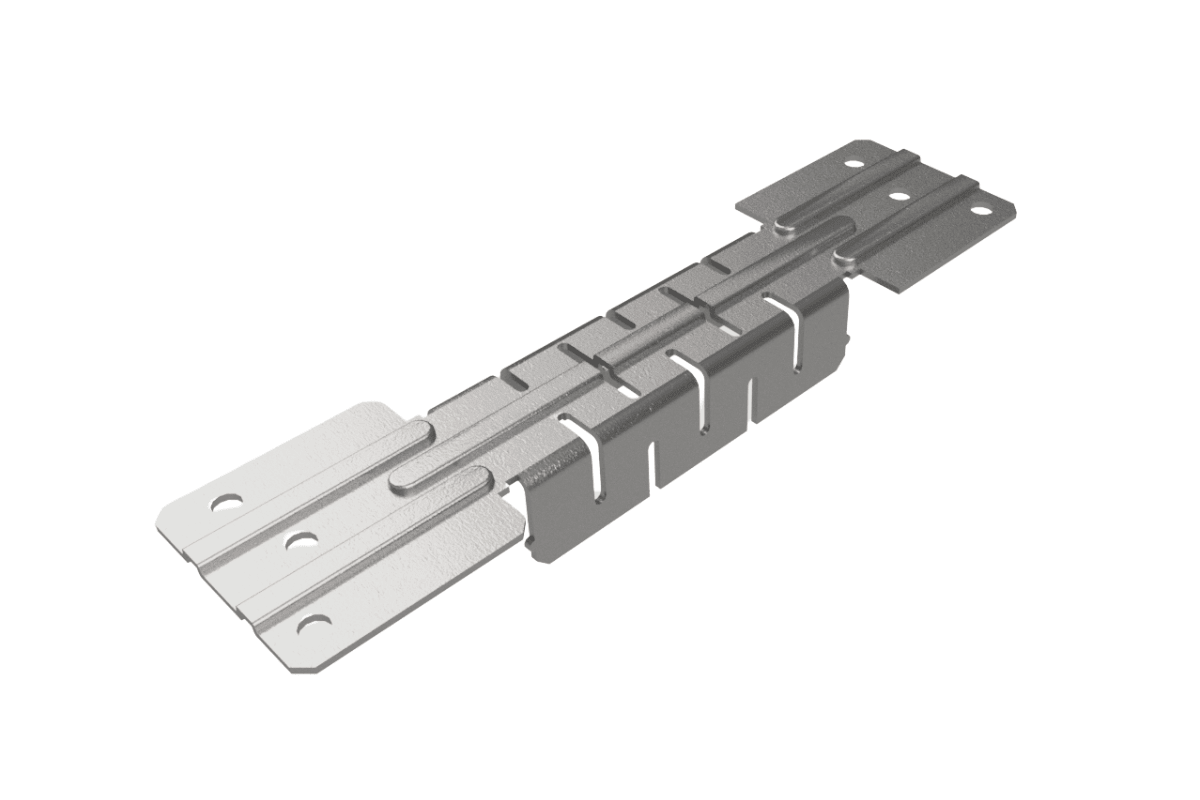

Acoustic Wall Strap
GB Patent: 2448765
The AWS wall straps are used to connect separating walls in attached dwellings.
Z275
Galvanised Mild Steel
Up to 3.2kN
Application Dependant
Special design allows for greater strength and acoustic properties over standard straps
Ensures correct cavity width, eliminating site errors
Increased compression and tension strength enabling greater transfer of wind loadings
Unique slotted profile reduces sound transmission
Approvals
Compliant with E–WT–1 & E–WT–2 (Robust Details) for separating wall straps
Compliant with Building Standards Scotland – Section 5 (Noise)
Compliant with Regulation G2 Northern Ireland – DOE Technical Booklet G
Compliant with Part E (Ireland)
Compliant with Part E (England & Wales) – Part E & Approved Document E
Paslode 3.4 x 35mm Electrogalvanised Square Twist Nail
Cullen products have been tested and CE marked to the requirements of ETAG015 using 3.4 x 35mm square twist nails.
Guidance
E-WT-1 - AWS fixed to face of panel
Straps at 1200mm (min) centres horizontally, one row of ties per storey height vertically
To be positioned near top of panel
E-WT-2 - AWS fixed to top rail
Straps at 1200mm (min) centres horizontally, one row of ties per storey height vertically
Straps at 1200mm (min) centres horizontally, one row of ties per storey height vertically.
Can be used with or without sheathing.
