PWS
PWS

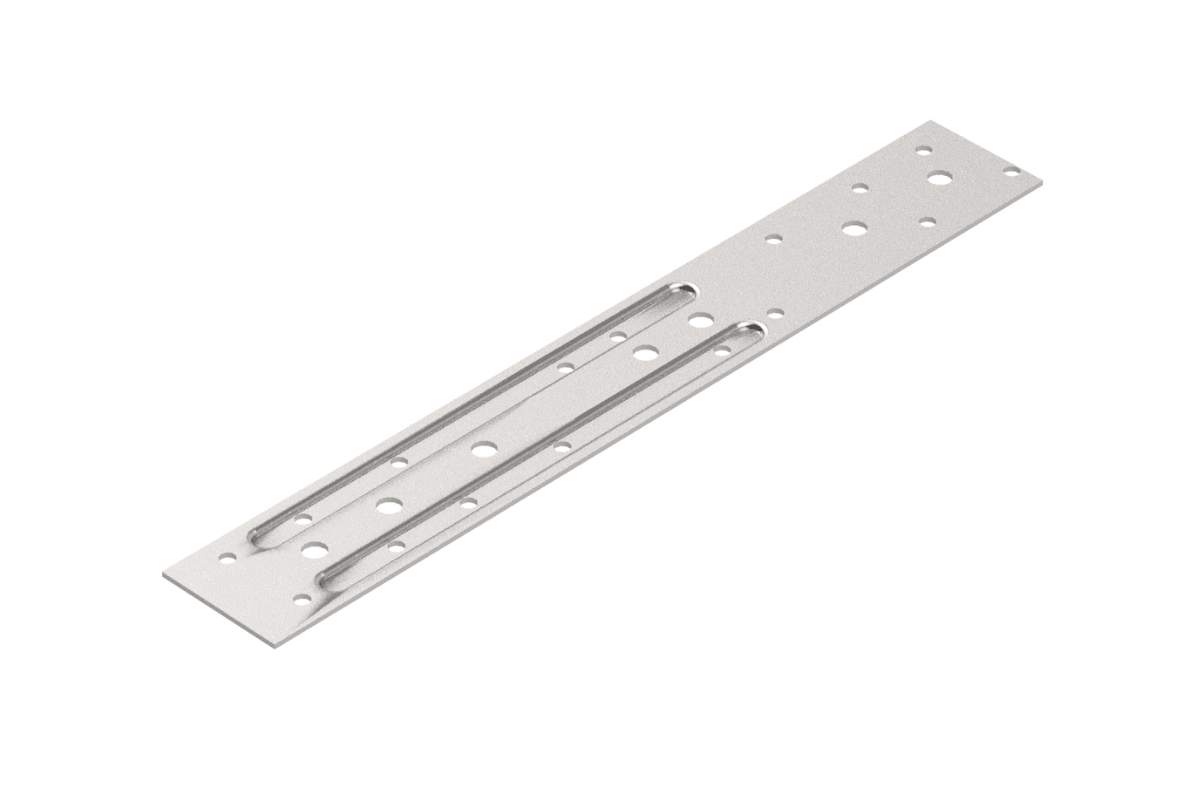

Party Wall Strap
The PWS wall straps are used to connect separating walls in attached dwellings.
Z275
Galvanised Mild Steel
Up to 2.7kN
Application Dependant
Approvals
Compliant with Part E (England & Wales) – Part E & Approved Document E
Compliant with Part E (Ireland)
Compliant with E–WT–1 & E–WT–2 (Robust Details) for separating wall straps
Compliant with Building Standards Scotland – Section 5 (Noise)
Compliant with Regulation G2 Northern Ireland – DOE Technical Booklet G
Two parts can accommodate cavity widths from 50–100mm

Paslode 3.4 x 35mm Electrogalvanised Square Twist Nail
Cullen products have been tested and CE marked to the requirements of ETAG015 using 3.4 x 35mm square twist nails.
All Applications
Guidance
E-WT-1 - PWS fixed to face of panel
Straps at 1200mm (min.) centres horizontally, one row of ties per storey height vertically
To be positioned near top of panel
Nails to have minimum 20mm edge distance
Straps at 1200mm (min) centres horizontally, one row of ties per storey height vertically.
Can be used with or without sheathing.
