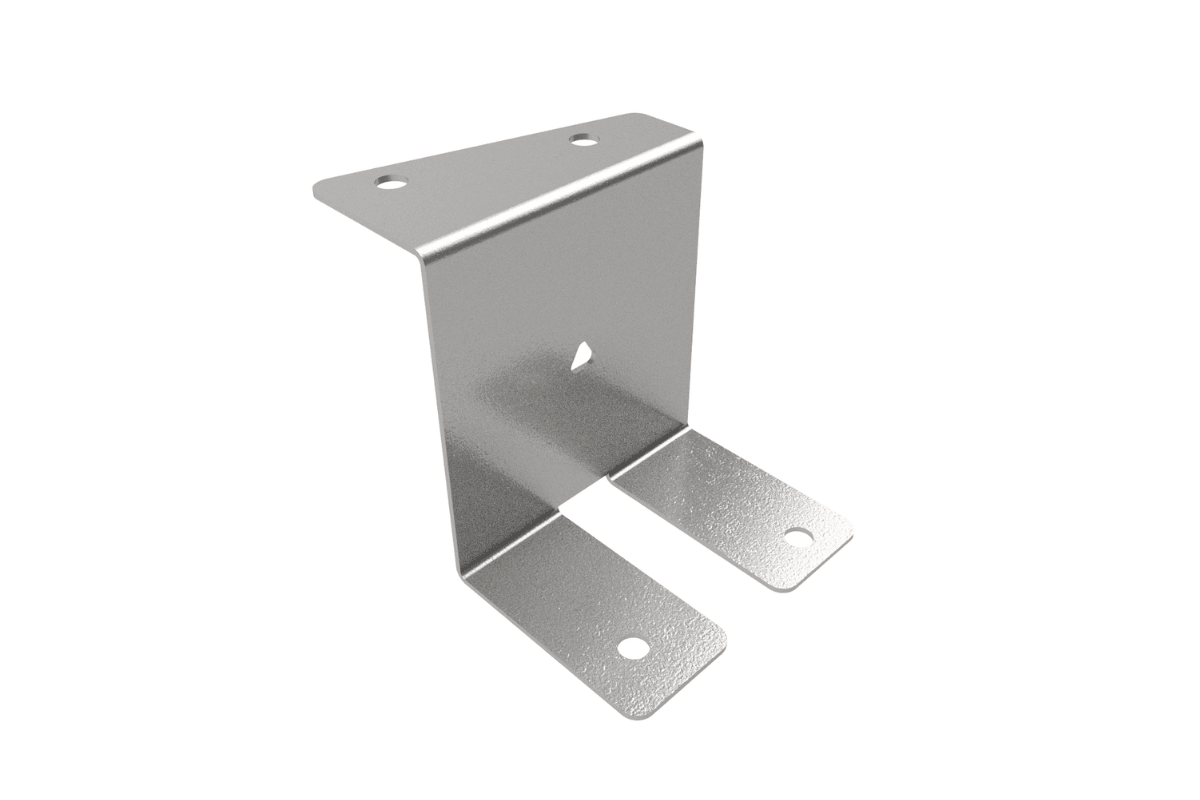

UZ Clip

Universal Z Clip

The UZ Clip is a multifunctional connector for solid timber and I-Joist noggins.

  • Suitable for I-Joist noggins and solid timber noggins
  • Suitable for supporting noggins in various applications
  • Adjacent noggins can be aligned without clashing
Z275

Galvanised Mild Steel

Up to 2.73kN

Application Dependant

CE marking shows that a product meets EU safety and regulatory requirements.

ETA (European Technical Assessment) is a document that assesses the performance of a construction product not fully covered by a harmonised standard.

UKCA marking shows that a product meets the UK’s safety and regulatory requirements.

EPD (Environmental Product Declaration) is a verified document that reports a product’s environmental impact across its lifecycle. View EPD

Service Class Service class defines the environmental and use conditions a construction product is designed to withstand during its intended lifetime.

NHBC (National House-Building Council) sets standards and provides warranties and inspection services for new homes in the UK. NHBC Approved

Supports a veriety of noggin details for walls and floors

Supports buttres wall applications

Adjacent noggins can be aligned without clashing

Cullen products have been tested and CE marked to the requirements of ETAG015 using 3.4 x 35mm square twist nails.

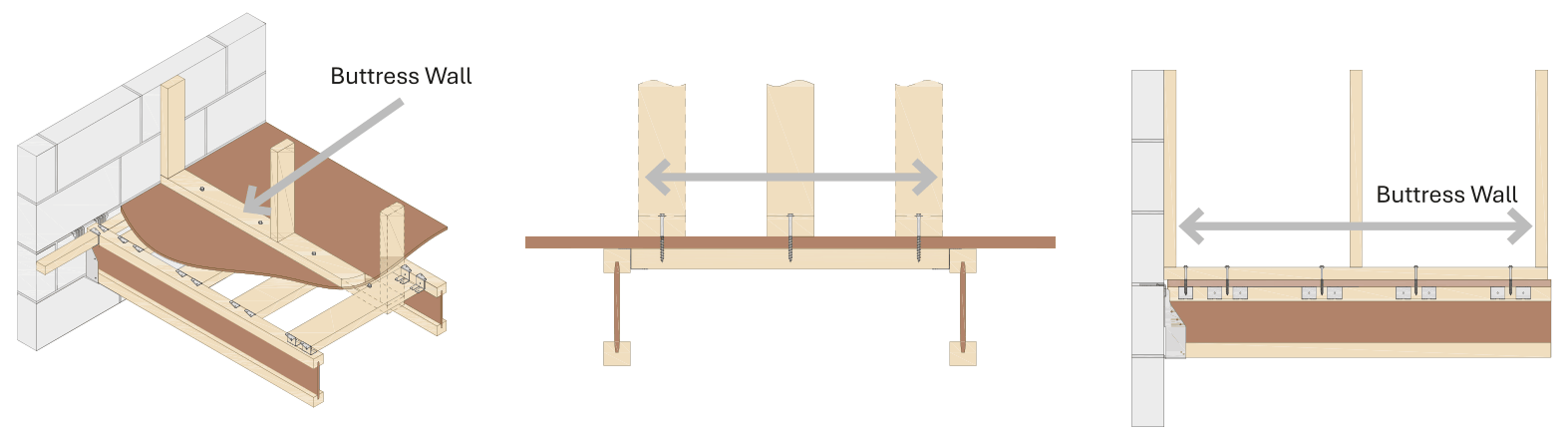

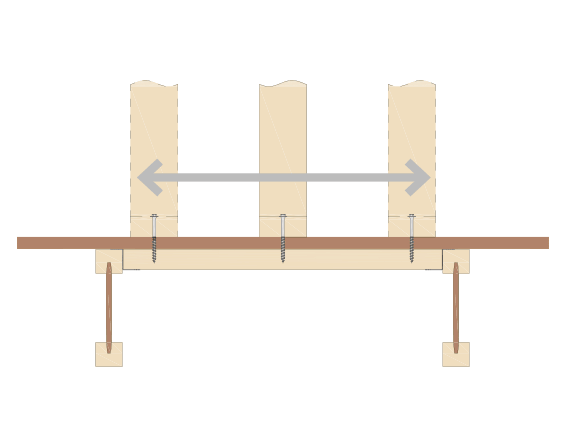

  • Noggin support in walls - additional details in the Cullen Technical Guide
  • Noggin support in floors - additional details in the Cullen Technical Guide

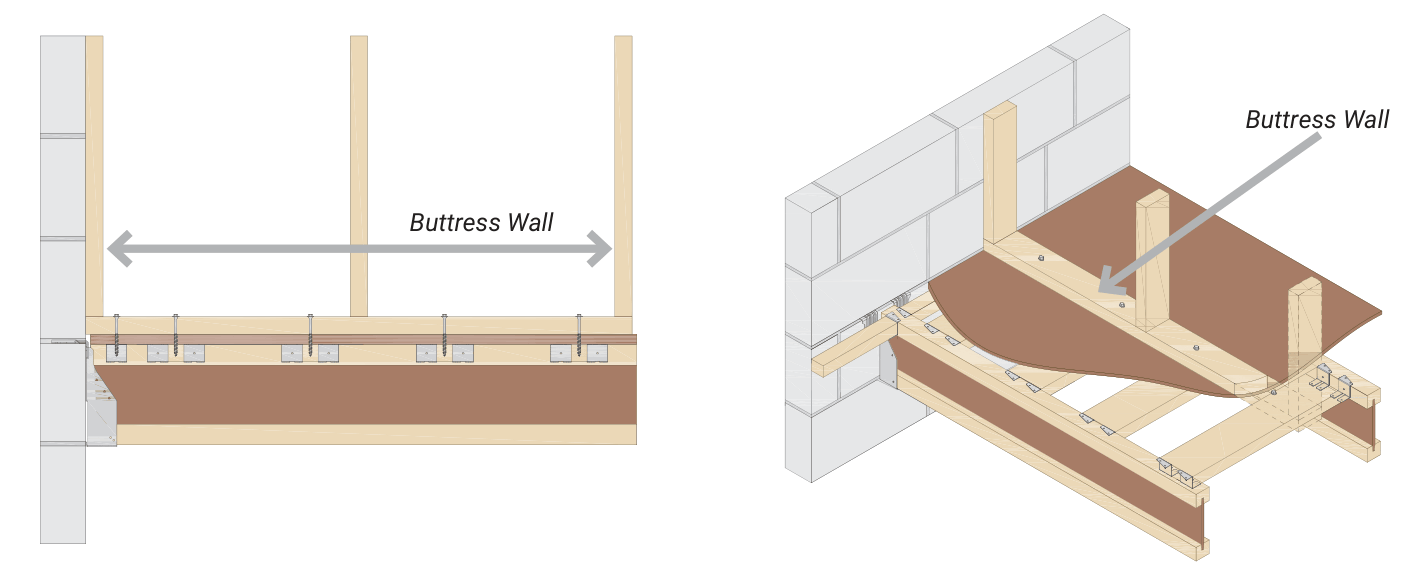

  • Noggin support with a buttress wall - additional details in the Cullen Technical Guide

The triangular nail hole must be filled for use with solid timber in floor applications.

Can be applied in walls and floors.
