HRS
HRS

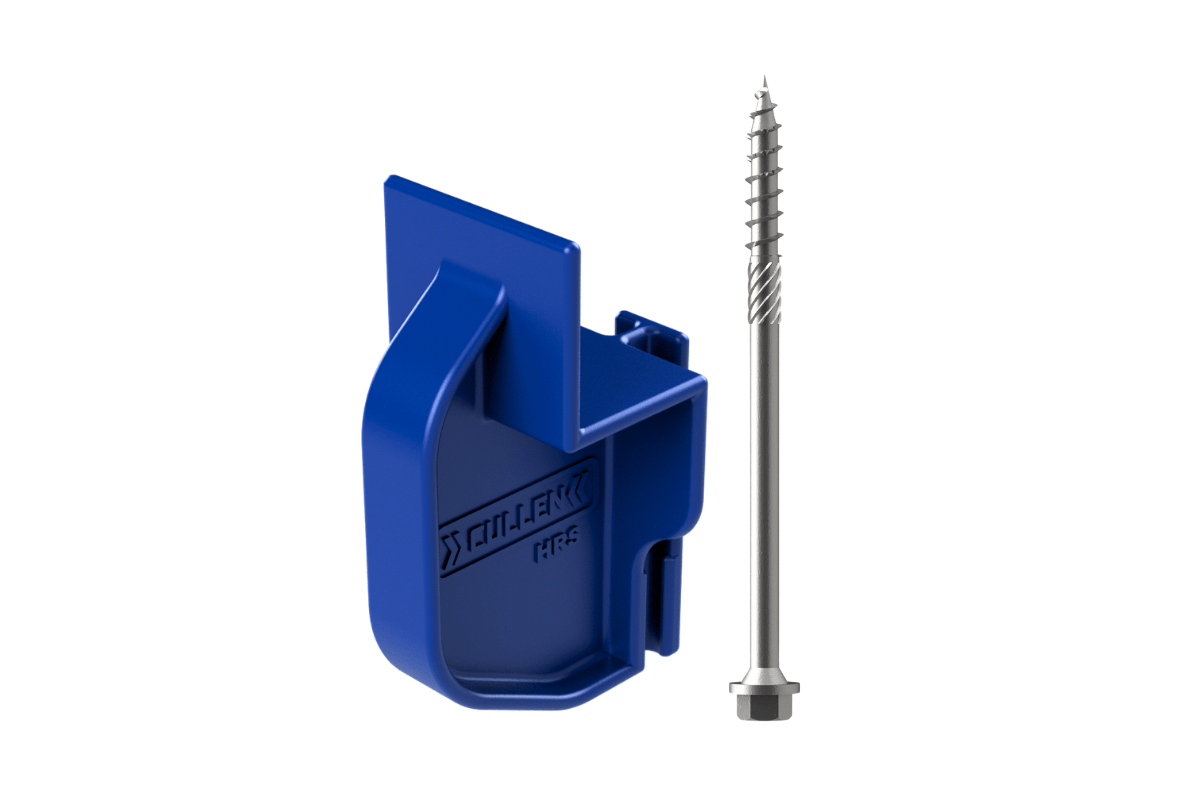

Head Restraint Screw
The HRS is used for securing non-load bearing partitions to the floor structure and provides lateral restraint to the panel.
Carbon Steel Screw
PA Guide
Up to 1kN
Application Dependant
Allows joist & truss deflection in compliance with NHBC Requirements
Reduces squeaks, plasterboard cracking & fixing defects
Enables for plasterboard to be pre-installed
Requires only ONE type of fixing
No pre-drilling required
Includes a 100% recyclable guide for straight installation
Guidance
All hangers in this range do not provide restraint, therefore restraint straps may be required for joist applications
Floor can be propped with acroprops and fully decked but must not be fully loaded until the masonry above has fully cured
Install the HRS at 1200mm centres maximum and ensure a minimum of two HRSs per partition, with a recommended edge distance of 200mm from the end of the panel.
Drive the screw until the thread is fully embedded in the joist.
Installation Guidance
Explore the step-by-step HRS installation video
The video demonstrates best practice on site, highlighting each stage of the installation process to help ensure accuracy, consistency, and compliance during fitting.
