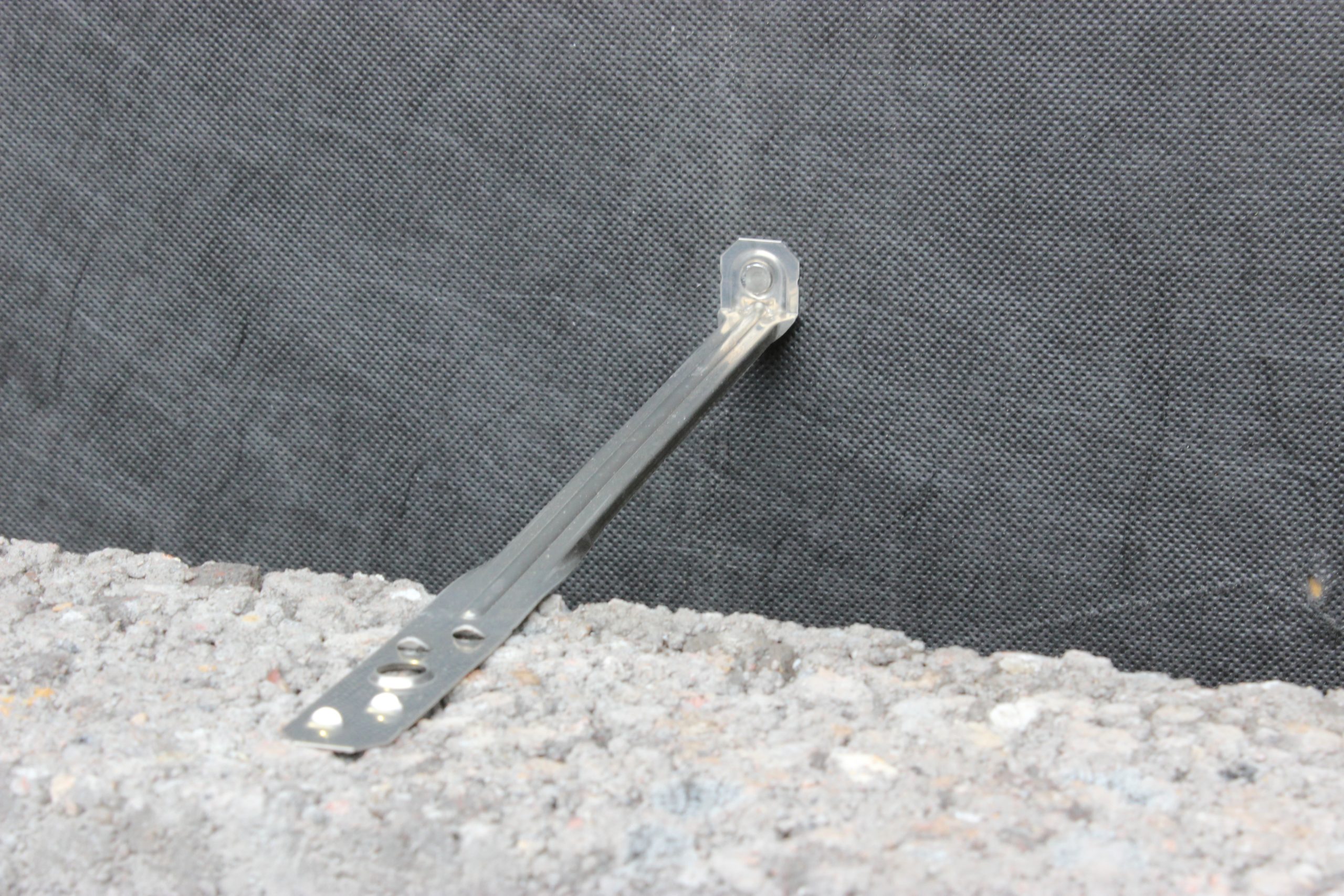

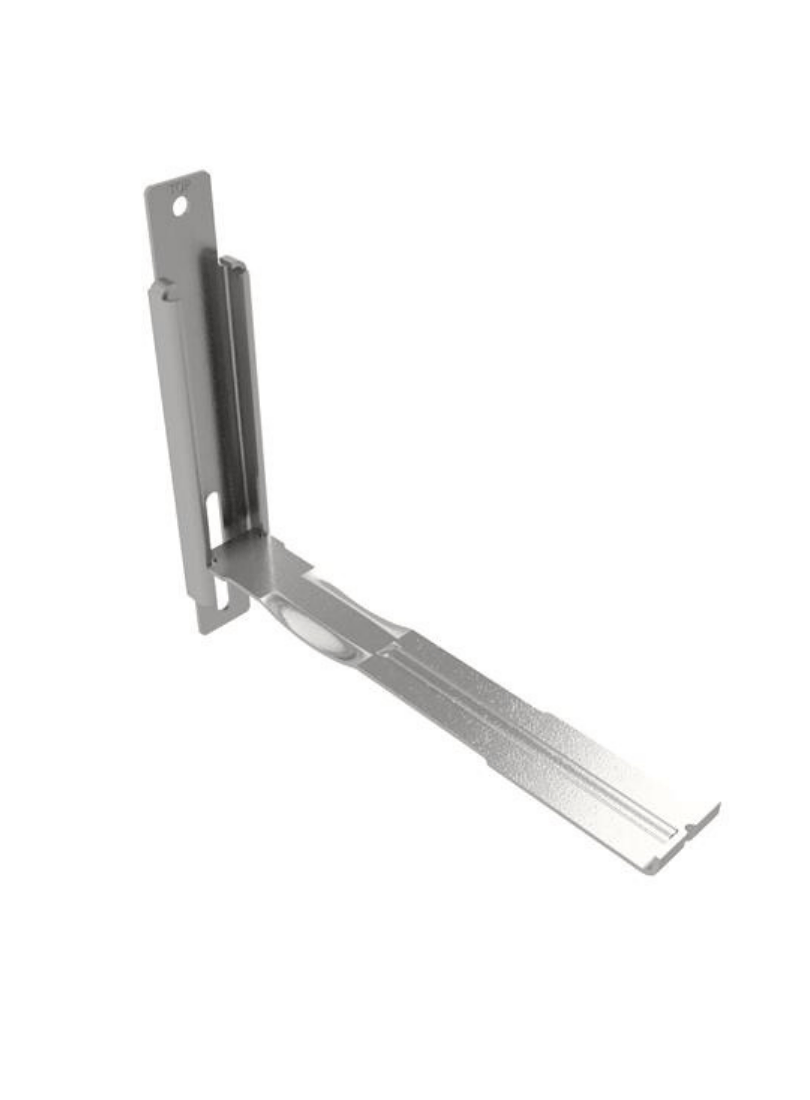

Timber Frame Wall Tie

The FT wall ties are used to restrain the external blockwork/brickwork back to the timber frame structure.

Suitable to use with Timber Frame
Accommodates maximum differential movement of 24mm
Tested and approved for H&H Thin Joint System – rapid building techniques, designed for speed of install and airtightness

304

Austentic Stainless Steel

To be calculated by building designer.

Refer to Cullen Technical Guide.

Technical Portal

Customer Services

CULLEN TECHNICAL GUIDE

Materials & Resources

Part of the Gable Restraint System

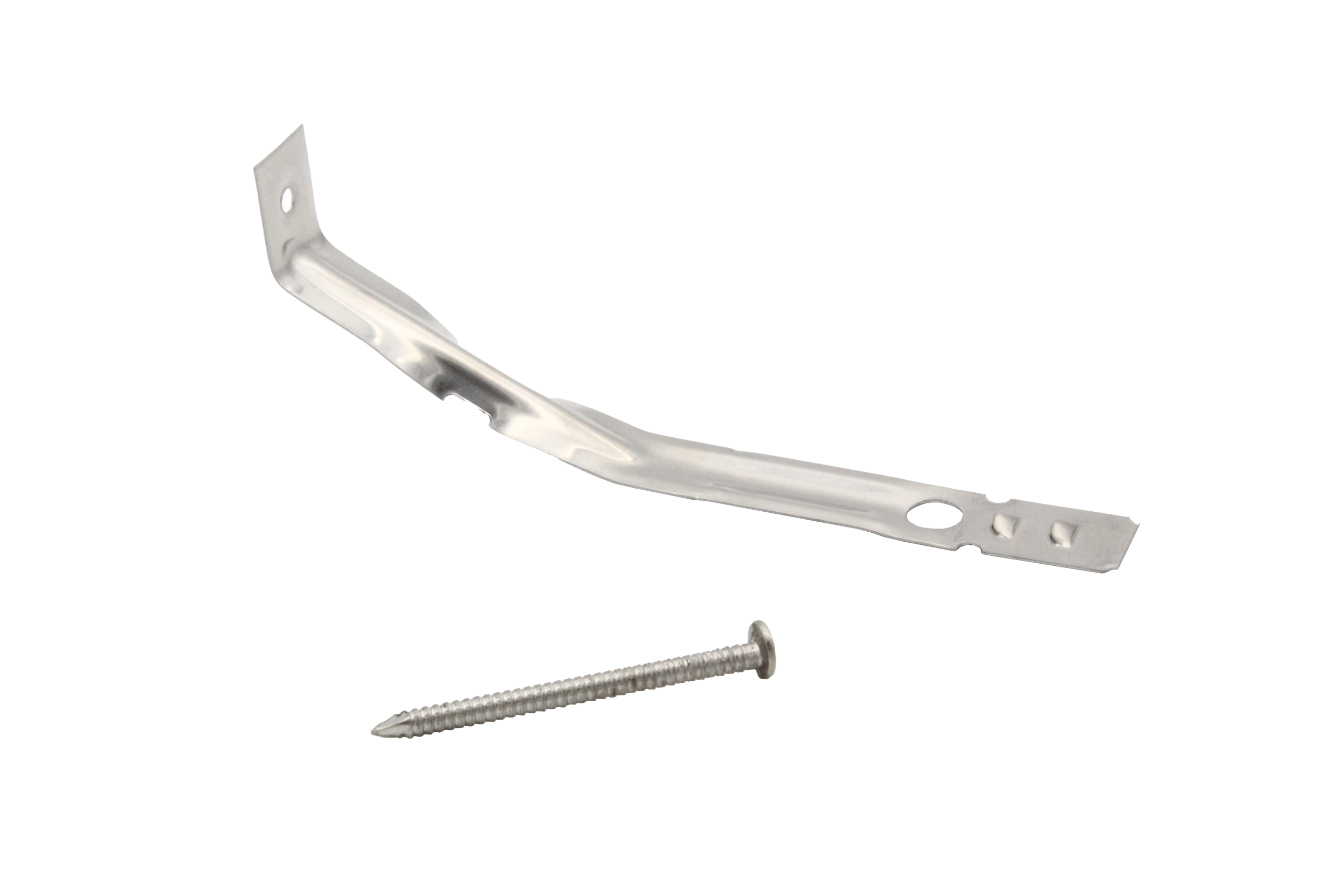

FT-50, 75, 100

Accommodates maximum differential movement of 24mm

Available to suit up to 115mm wide cavities

FT-125-150

Accommodates a maximum differential movement of 6mm

1 part for cavity widths of 120 to 160mm

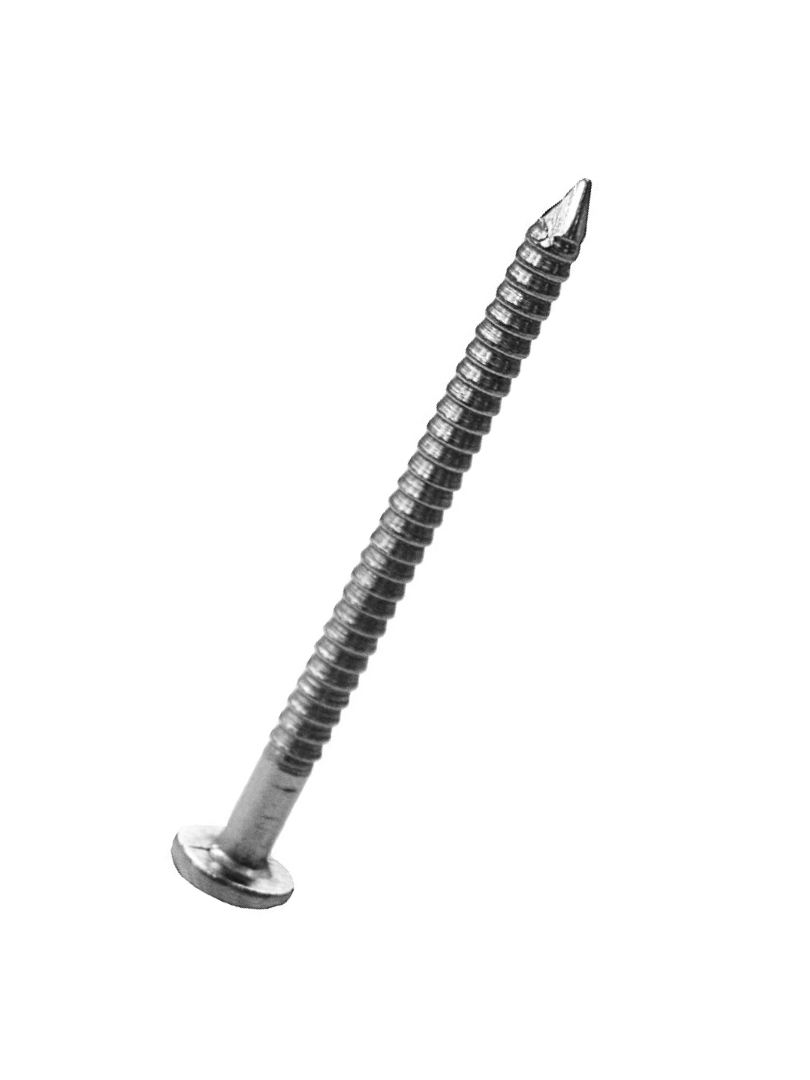

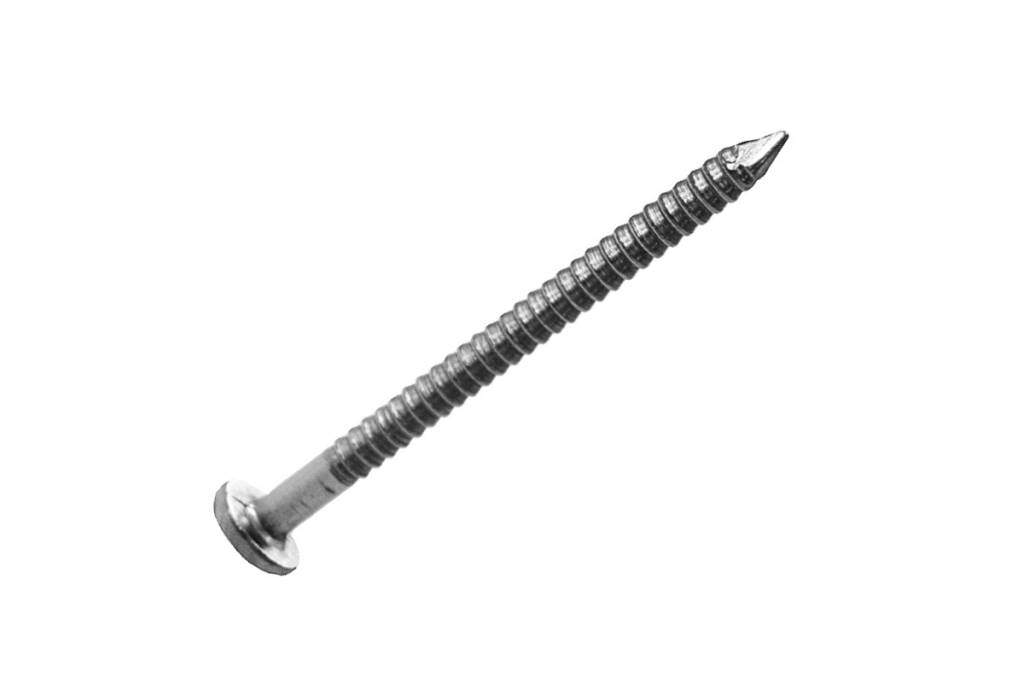

3.35 x 50mm Stainless Steel Annular Ring Shank Nails

Specific Cullen products have been specified to be fixed with 3.35 x 50mm Stainless Steel Annular Ring Shank Nails for certain applications.

On the basis of wall ties having different failures in different materials e.g, tension – nail withdrawal (timber), compression – buckling (steel), we are now no longer publishing the lowest values and to assist the Building Designer we have shown the test results, failures modes and calculations.

Cullen's Gable Restraint Estimation Tool: Simplifying the Quotation Process

The estimation tool helps users quickly and accurately estimate product quantities for Cullen’s Gable Restraint System.

Available exclusively to Cullen customers, this tool ensures fast and professional estimates.

We’ve also created a walkthrough video to guide you step-by-step through how the tool works.

*Please refer to our technical guide for test results, failure modes and calculations.

Guidance

Spacing also required at each side of vertical expansion joints

Closer vertical spacing may be required in exposed locations as determined by the Building Designer

Wall ties to be installed perpendicular to timber and blockwork these cannot be installed at a skew

Additional ties are required at door and window openings (spacing should be no more than 300mm vertical centres and within 225mm of the jambs at openings).

Top row of ties should be 3 courses below top of brickwork.

Installation Guidance

Explore the step-by-step FT installation video

The video demonstrates best practice on site, highlighting each stage of the installation process to help ensure accuracy, consistency, and compliance during fitting.
