VHGG
VHGG

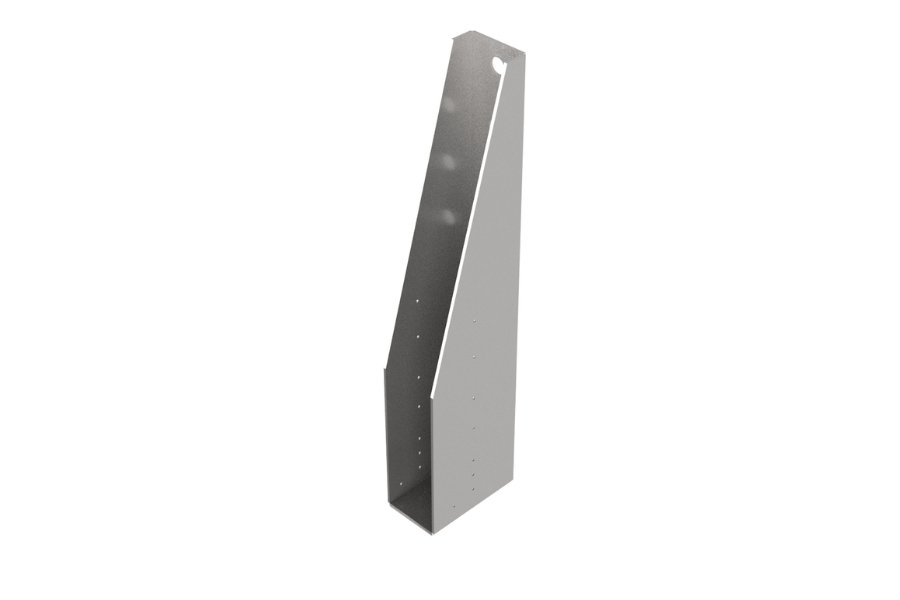

Very Heavy Girder To Girder
The VHGG hanger is designed to support multiple ply girder trusses from a vertical web in very high load situations.
Mild Steel
Zinc Undercoat
Up to 94.60kN
Solid Timber Header (min. TR26) - 4 ply 47mm (188mm min.)
Fixings into vertical web only, therefore no requirement for increased bottom chord depths
Additional side fixings allows for greater uplift capacity
Paslode 3.4 x 35mm Electrogalvanised Square Twist Nail
Cullen products have been tested and CE marked to the requirements of ETAG015 using 3.4 x 35mm square twist nails.
M20 Bolts
The VHGG Hangers have additional large round holes which can be used to accommodate M20 bolts when specified.
Truss to Truss
Enhanced Uplift
Refer to the Cullen Technical Guide
