TS
TS

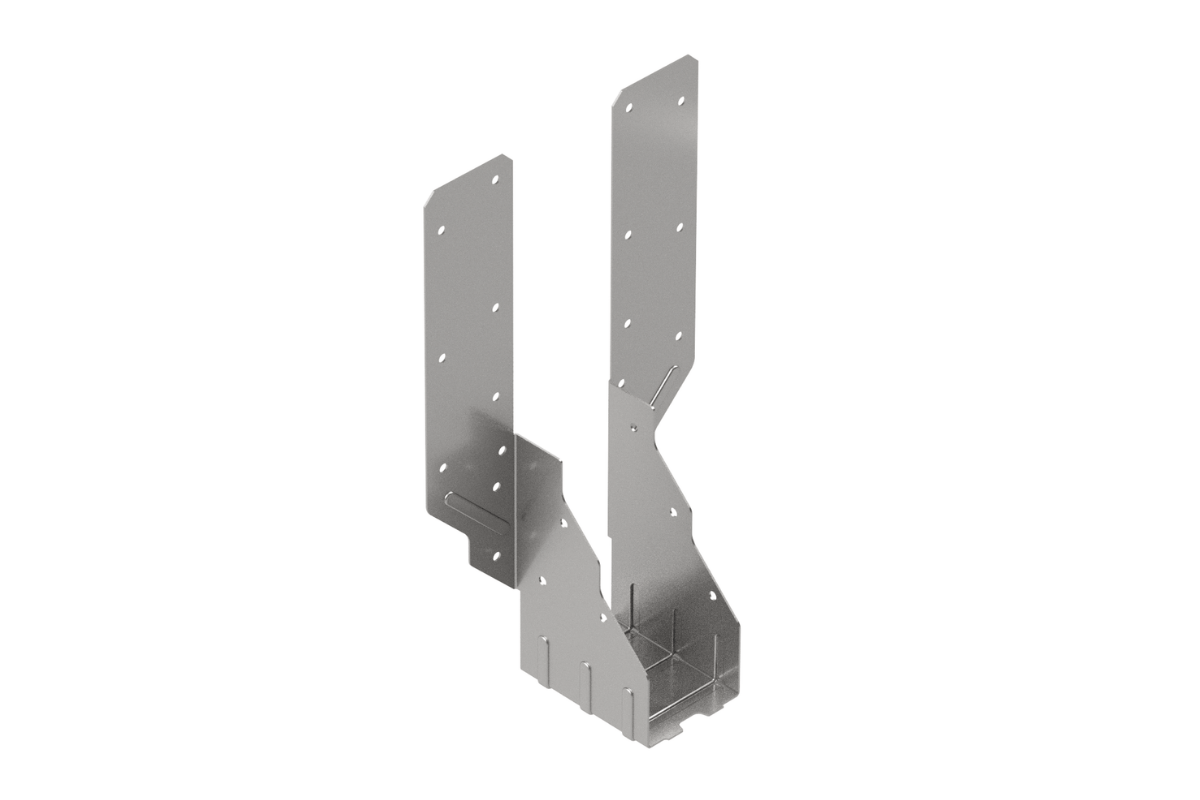

Truss Shoe
The TS hanger is designed to support trussed rafters from primary girders. The hanger is designed to suit a variety of installations around different girder configurations.
Z275
Galvanised Mild Steel
Up to 15.52kN
Solid Timber Header (min. C20)
4 sizes available to suit standard single or double trussed rafters
Allows design loading to be effectively transferred without local over stressing
The high performance nail configuration minimises any direct deflection or rotation caused by the incoming truss not abutting the primary girder
Paslode 3.4 x 35mm Electrogalvanised Square Twist Nail
Cullen products have been tested and CE marked to the requirements of ETAG015 using 3.4 x 35mm square twist nails.
**When timber depth is shallower than ‘F’ dimension a timber packer is required.
Refer to the Cullen Technical Guide.
60% depth rule.
4 sizes available to suit standard single or double trussed rafters.
