PRODUCTS

HUH
1/2

HUH

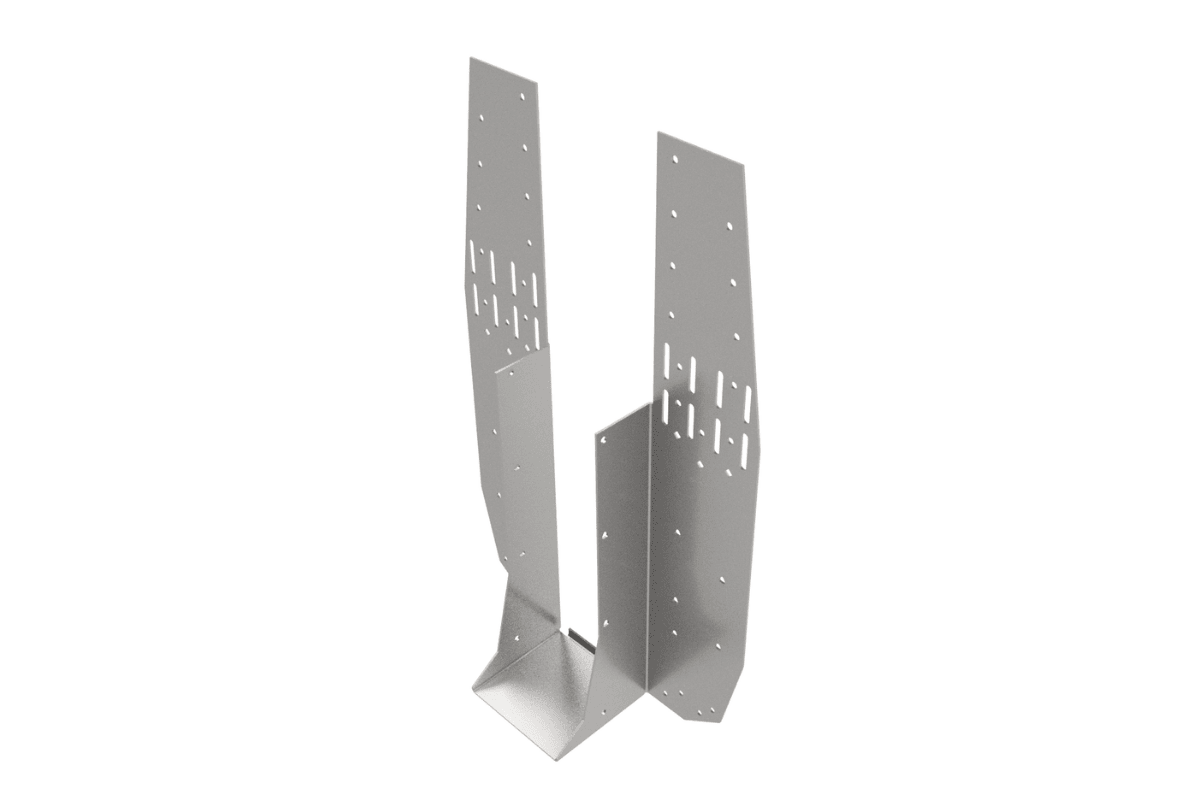

Heavy Universal Hanger

GB Patent: 2497747

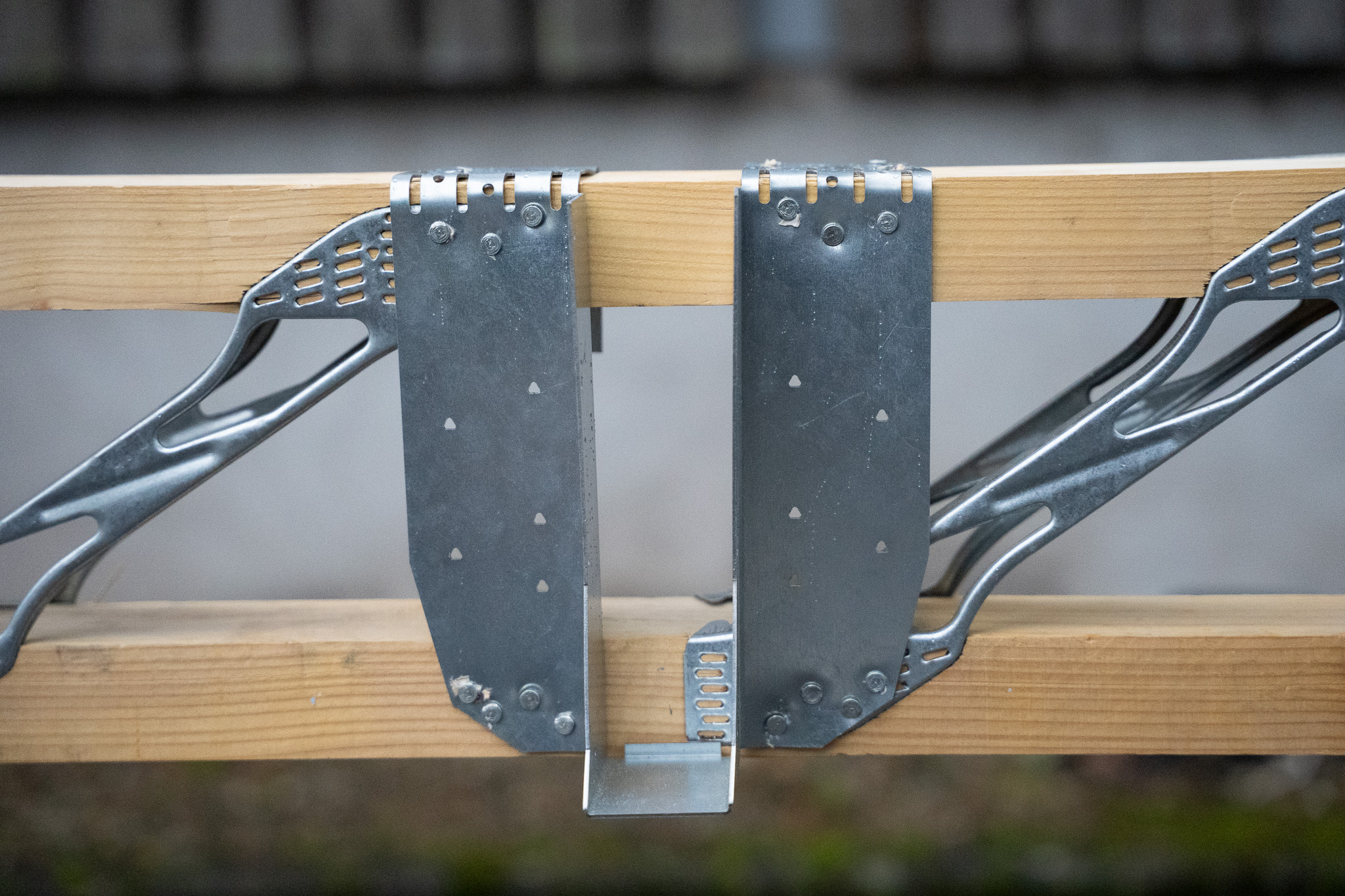

The HUH hanger is designed for any joist to joist, joist to trimmer or joist to steel application in high load applications.

  • Suitable for I-Joist, Open web joists, solid timber and steel connections
  • 1 product for 9 detailed applications
  • Patented elongated slots and unique snap off feature allows for height adjustment and face fix only option
Z275

Galvanised Mild Steel

Up to 29.50kN

Application Dependant

CE marking shows that a product meets EU safety and regulatory requirements.

ETA (European Technical Assessment) is a document that assesses the performance of a construction product not fully covered by a harmonised standard.

UKCA marking shows that a product meets the UK’s safety and regulatory requirements.

EPD (Environmental Product Declaration) is a verified document that reports a product’s environmental impact across its lifecycle. View EPD

Service class defines the environmental and use conditions a construction product is designed to withstand during its intended lifetime.

NHBC (National House-Building Council) sets standards and provides warranties and inspection services for new homes in the UK. NHBC Approved

1 product for 9 detailed applications

Fewer parts covering all applications

Efficient nailing patterns to reduce the number of nails and give high performance

Cullen products have been tested and CE marked to the requirements of ETAG015 using 3.4 x 35mm square twist nails.

All hangers in this range do not provide restraint, therefore restraint straps may be required for joist applications

Floor can be propped with acroprops and fully decked but must not be fully loaded until the masonry above has fully cured

For I-joist the hanger must support 60% of the joist depth, for solid timber and metal web joists the hanger must support 100% of the joist depth to meet NHBC requirments.

Installation Guidance

Explore the step-by-step HUH installation video

The video demonstrates best practice on site, highlighting each stage of the installation process to help ensure accuracy, consistency, and compliance during fitting.
