TA-1
TA-1

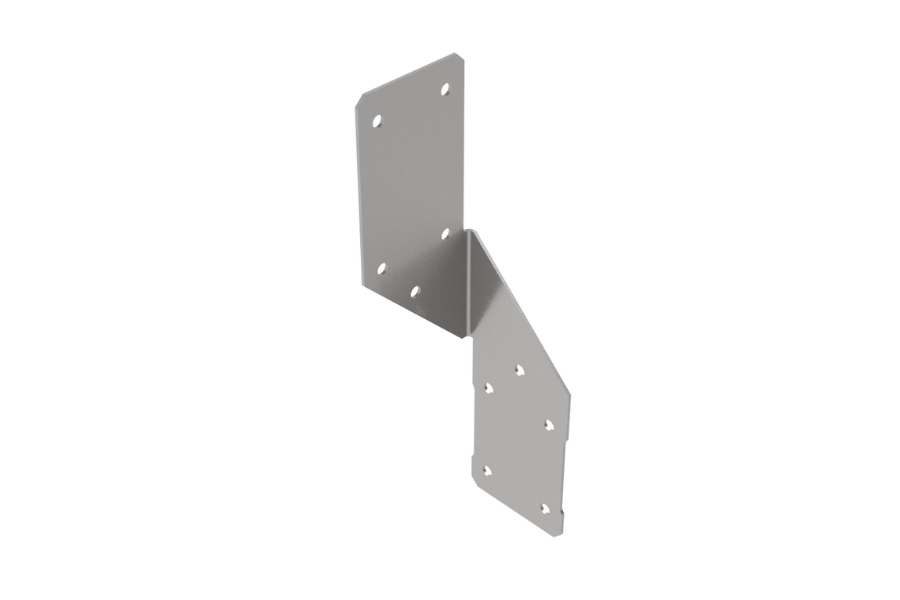

Framing Anchor
The TA–1 provides a positive connection on two planes without encroaching into the internal space.
Z275
Galvanised Mild Steel
Up to 3.12kN
Load Direction Specific
Eliminates damage from skew nailing
Single anchor means the part is not width dependant
Paslode 3.4 x 35mm Electrogalvanised Square Twist Nail
Cullen products have been tested and CE marked to the requirements of ETAG015 using 3.4 x 35mm square twist nails.
1 no. TA–1 standard installation**
1 no. TA–1 installed to opposite side**
1 no. TA–1 installed to outer face**
All hangers in this range do not provide restraint, therefore restraint straps may be required for joist applications
Floor can be propped with acroprops and fully decked but must not be fully loaded until the masonry above has fully cured
Double wall plate required for all installations (min. 75mm) unless using in a timber frame application where theframing anchor can be fitted to the head binder.
Also suitable to fix to the outside of the wall plate depending on truss heel detail.
