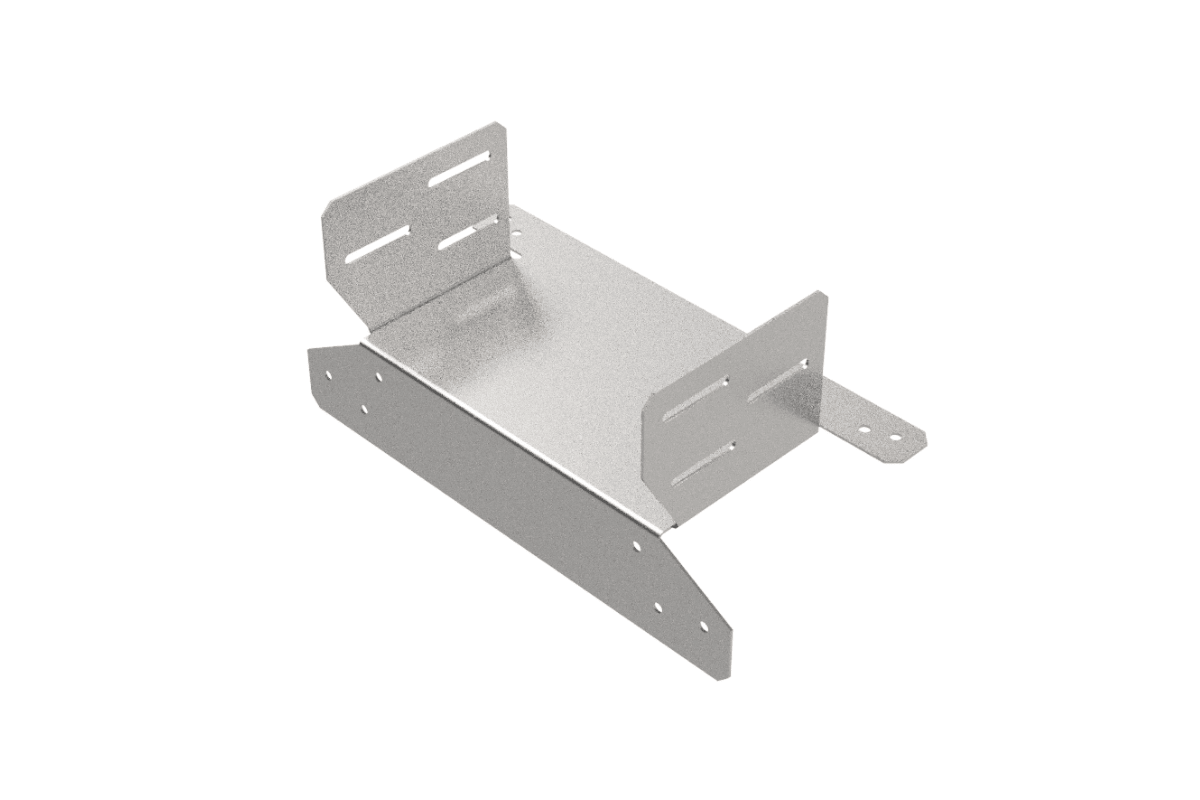

Slide Shoe
The SS allows for a secure fixing and horizontal movement between raised tie/scissor trusses and the wallplate.
- Suitable for use with solid timber header (min. TR26)
- Provides a maximum of 26mm lateral movement without compromising its resistance to uplift
Z275
Galvanised Mild Steel
Up to 4.10kN
Load Direction Specific
CE marking shows that a product meets EU safety and regulatory requirements.
ETA (European Technical Assessment) is a document that assesses the performance of a construction product not fully covered by a harmonised standard.
EPD (Environmental Product Declaration) is a verified document that reports a product’s environmental impact across its lifecycle. View EPD
Service class defines the environmental and use conditions a construction product is designed to withstand during its intended lifetime.
NHBC (National House-Building Council) sets standards and provides warranties and inspection services for new homes in the UK. NHBC Approved
Provides a maximum of 26mm lateral movement without compromising its resistance to uplift

Paslode 3.4 x 35mm Electrogalvanised Square Twist Nail
Cullen products have been tested and CE marked to the requirements of ETAG015 using 3.4 x 35mm square twist nails.

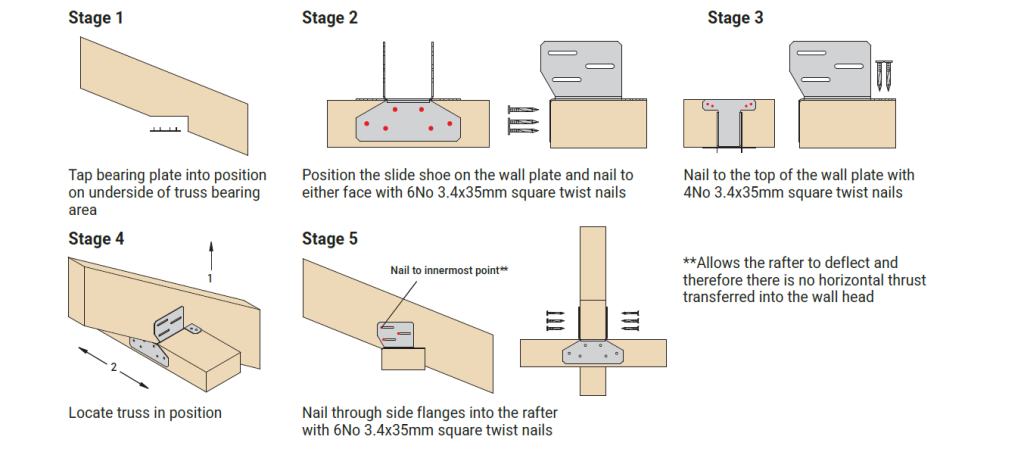

Application: Truss to Wallplate
Refer to the Cullen Technical Guide
