UTS
UTS

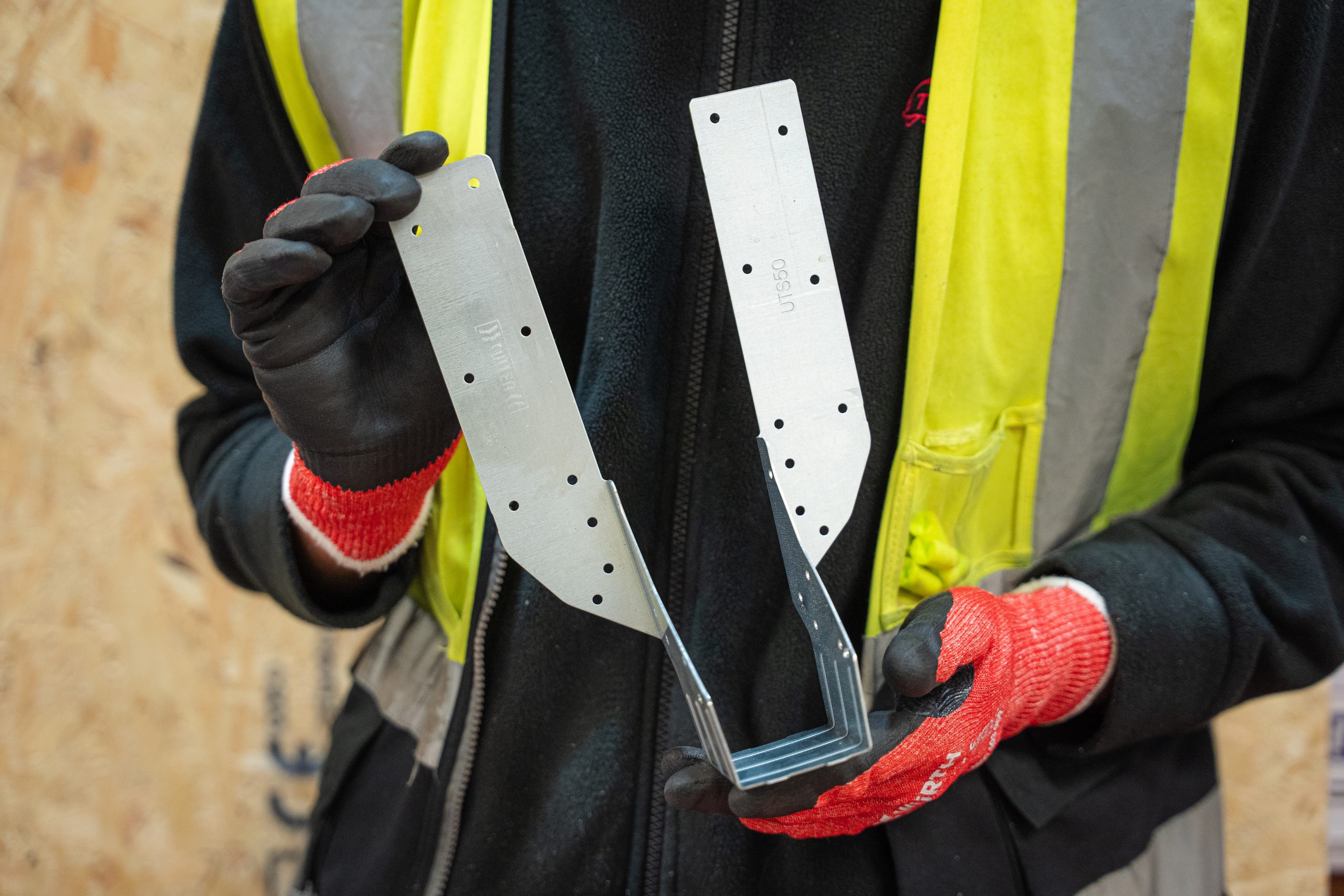

Univeral Truss Shoe
The UTS is designed to support trussed rafters from primary girders and, simple solid timber to timber connections.
Z275
Galvanised Mild Steel
Up to 16.09kN
Solid Timber Header
(Min TR26/C27)
Truss hanger range reduced by up to 44%
Up to 54% higher load values on standard applications
Reduction in design & on-site errors through simplification
One fixing type for all applications
Paslode 3.4 x 35mm Electrogalvanised Square Twist Nail
Cullen products have been tested and CE marked to the requirements of ETAG015 using 3.4 x 35mm square twist nails.
Masonry Fixings to be specified by the building designer.
**When timber depth is shallower than ‘F’ dimension a timber packer is required.
Nail packer to truss with 3 no. fixings into front ply, 3 no. fixings into rear ply using Paslode annular ring shank 2.8 x 63mm.
Product not suitable for use with I-Joists, Open Web Joists or Solid Timber Joists (due to stirrup height "F") within a timber floor as defined by NHBC Standards Section 6.4.
When used for supporting solid timber flat roof joists, the stirrup height "F" must be a minimum of 60% of the joist depth.
Features & Benefits UTS
Explore the UTS features and benefits video
This video highlights the key features and added benefits of the Universal Truss Shoe, showcasing its versatility across five applications.
Installation Videos
Complete Installation Support

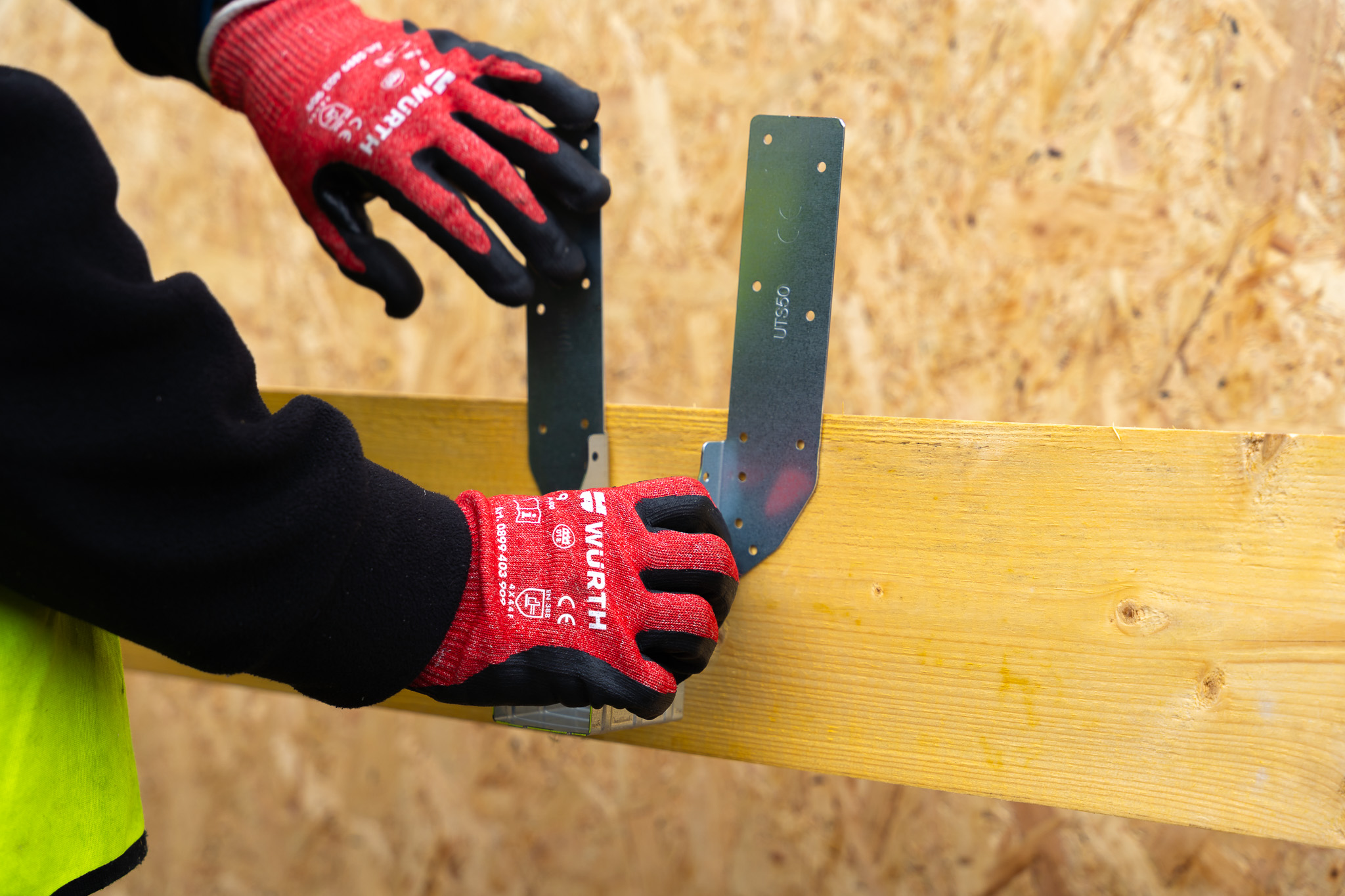

This video offers a step-by-step installation walkthrough for the Universal Truss Shoe hanger.
